2 3 Colors 10 Stations Rotary Screen Printer
Model: Z103
Auto loading conveyor, with loading system with hopper optional;Auto flame treatment;

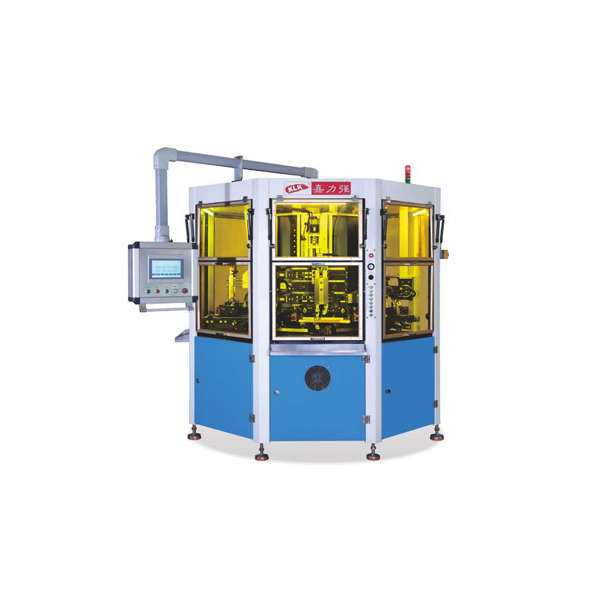

Z103 Automatic Cylindrical Screen Printing Machine
The Z103 Automatic Cylindrical Screen Printing Machine is designed for high-speed and precision printing on cylindrical, oval, and square products. It is widely used in the cosmetics, stationery, personal care, and packaging industries. With its automatic feeding system, UV curing options, and intelligent control, the machine helps improve production efficiency while ensuring stable printing quality.
Features
-
Automatic loading conveyor for continuous production.
-
Optional hopper loading system for higher automation.
-
Automatic flame treatment to improve ink adhesion on plastic surfaces.
-
Optional mechanical pre-registration system for accurate positioning.
-
LED UV or electrode UV curing system available to meet different production requirements.
-
Multiple printing programs can be stored for quick job changeovers.
-
Fully enclosed cabinet design for a cleaner, safer, and more environmentally friendly working environment.
-
Stable operation with high printing accuracy and consistent quality.
-
Easy operation and convenient maintenance.
Applications
The Z103 is suitable for printing on cylindrical products without a registration mark.
Typical applications include:
-
Pen barrels
-
Lipstick tubes
-
Mascara tubes
-
Cosmetic containers
-
Plastic bottles
-
Small cylindrical packaging products
Technical Specifications
| Item | Specification |
|---|---|
| Model | Z103 |
| Printing Object Diameter | Φ10–40 mm |
| Printing Object Height | 35–150 mm |
| Printing Stroke | 150 mm |
| Maximum Screen Frame Size | 350 × 250 mm |
Printing Speed
| Product Shape | Speed |
|---|---|
| Round | 40–60 pcs/min |
| Oval | 40–60 pcs/min |
| Square | 30–40 pcs/min |
Machine Specifications
| Item | Specification |
|---|---|
| UV System | LED UV (230 W) or Electrode UV (Optional) |
| Air Pressure | 0.5–0.7 MPa |
| Power Supply | 380 V, 50/60 Hz |
| Total Power | 6 kW |
Advantages
-
High-speed automatic production
-
Consistent and accurate printing quality
-
Flexible UV curing options
-
Reduced labor costs through automation
-
Suitable for various cylindrical plastic products
-
Eco-friendly enclosed machine structure
-
Reliable performance for long-term industrial production
