ASTM A53 Seamless Pipe | Grade A & B | Type S | Structural & Mechanical | Shenlong Pipe
Grade A/B, In Stock for Fast DeliveryWe supply ASTM A53 Grade A and Grade B seamless pipe (Type S) for structural, mechanical, and low-pressure applications.

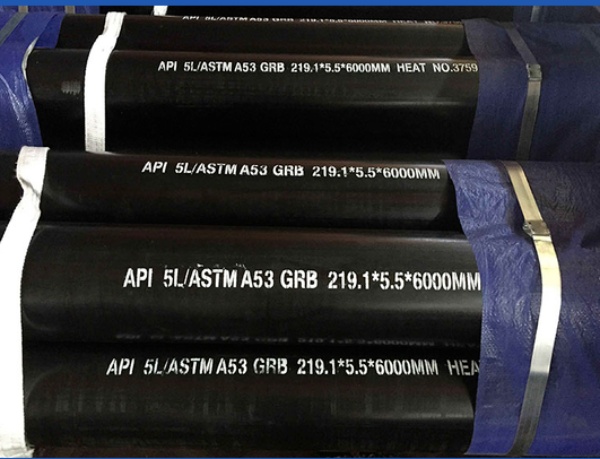

ASTM A53 Seamless Pipe
Grade A · Grade B | Type S | Structural & Mechanical Applications
ASTM A53 is one of the most widely used specifications for carbon steel pipe. While often associated with welded pipe (Type E/F), the standard explicitly includes Type S (Seamless) for applications where a weld seam is undesirable.
ASTM A53 seamless pipe is manufactured via hot rotary piercing followed by mandrel mill rolling or cold drawing, ensuring uniform grain structure and absence of weld seams – critical for applications where integrity under cyclic loading or internal pressure is required.
We supply ASTM A53 seamless pipe from stock in Grades A and B, with full certification and global shipping.
Why Choose Seamless Over Welded in A53?
| Feature | ASTM A53 Seamless (Type S) | ASTM A53 Welded (Type E/F) | Why It Matters |
|---|---|---|---|
| Weld seam | ❌ None | ✅ Longitudinal seam | A53 seamless pipe eliminates potential weak point in fatigue-prone systems |
| Strength uniformity | ✅ Isotropic | ⚠️ Anisotropic | A53 seamless pipe has uniform properties in all directions |
| Bending performance | ✅ Excellent | ⚠️ Good | A53 seamless pipe preferred for structural tubing subject to lateral loads |
| Coating adhesion | ✅ Continuous surface | ⚠️ Weld area may require special prep | A53 seamless pipe ideal for FBE or galvanizing |
| Availability | ✅ Stock sizes | ✅ Stock sizes | Both widely available |
Design Note: ASTM A53 seamless pipe is not approved for high-temperature service in ASME B31.1 (Power Piping). For steam lines or continuous service above 150°C, specify ASTM A106 seamless pipe.
Ready Stock – A53 Seamless Pipe NPS ½" to 18", Sch 10 to XXS
| NPS | OD (mm) | Sch 10 Wall (mm) | Sch 40 Wall (mm) | Sch 80 Wall (mm) | Sch 160 Wall (mm) | XXS Wall (mm) | Stock Location |
|---|---|---|---|---|---|---|---|
| ½" | 21.3 | 2.11 | 2.77 | 3.73 | 4.78 | 7.47 | Tianjin |
| ¾" | 26.7 | 2.11 | 2.87 | 3.91 | 5.56 | 7.82 | Tianjin |
| 1" | 33.4 | 2.77 | 3.38 | 4.55 | 6.35 | 9.09 | Tianjin |
| 1-½" | 48.3 | 2.77 | 3.68 | 5.08 | 7.14 | 10.16 | Tianjin |
| 2" | 60.3 | 2.77 | 3.91 | 5.54 | 8.74 | 11.07 | Tianjin |
| 3" | 88.9 | 3.05 | 5.49 | 7.62 | 11.13 | 15.24 | Tianjin |
| 4" | 114.3 | 3.05 | 6.02 | 8.56 | 13.49 | 17.12 | Tianjin |
| 6" | 168.3 | 3.40 | 7.11 | 10.97 | 18.26 | 21.95 | Tianjin |
| 8" | 219.1 | 3.76 | 8.18 | 12.70 | 23.01 | 22.23 | Tianjin |
| 10" | 273.0 | 4.19 | 9.27 | 12.70 | 28.58 | 25.40 | Tianjin |
| 12" | 323.8 | 4.57 | 10.31 | 17.48 | 33.32 | 25.40 | Tianjin |
| 14" | 355.6 | 4.78 | 11.13 | 19.05 | 35.71 | – | Mill direct |
| 16" | 406.4 | 4.78 | 12.70 | 21.41 | 40.49 | – | Mill direct |
| 18" | 457.2 | 4.78 | 14.27 | 23.01 | 45.24 | – | Mill direct |
Larger sizes up to 24" available on request. Custom lengths available – specify your requirement.
Chemical Composition – ASTM A53 Seamless Pipe
| Element | ASTM A53 Grade A | ASTM A53 Grade B | Notes |
|---|---|---|---|
| Carbon (C) | ≤ 0.25% | ≤ 0.30% | Higher carbon increases strength |
| Manganese (Mn) | 0.27 – 0.93% | 0.29 – 1.06% | Improves strength and hardenability |
| Phosphorus (P) | ≤ 0.050% | ≤ 0.050% | Kept low for weldability |
| Sulfur (S) | ≤ 0.050% | ≤ 0.050% | Kept low for weldability |
| Silicon (Si) | 0.10% max (typical) | 0.10% max (typical) | Deoxidizer |
| Copper (Cu) | ≤ 0.40% | ≤ 0.40% | Residual element |
| Nickel (Ni) | ≤ 0.40% | ≤ 0.40% | Residual element |
| Chromium (Cr) | ≤ 0.40% | ≤ 0.40% | Residual element |
| Molybdenum (Mo) | ≤ 0.15% | ≤ 0.15% | Residual element |
All grades of our ASTM A53 seamless pipe are made from fully killed carbon steel with controlled deoxidation (aluminum or silicon-killed) to prevent porosity.
Mechanical Properties – ASTM A53 Seamless Pipe
| Grade | Tensile Strength (min) | Yield Strength (min) | Elongation (min) |
|---|---|---|---|
| A53 Grade A | 330 MPa (48,000 psi) | 205 MPa (30,000 psi) | 30%* |
| A53 Grade B | 415 MPa (60,000 psi) | 240 MPa (35,000 psi) | 25%* |
*Elongation varies with wall thickness. Full table provided with MTR for every ASTM A53 seamless pipe order.
Dimensional Tolerances – ASTM A53 Seamless Pipe (ASME B36.10M)
| NPS | Outside Diameter Tolerance | Wall Thickness Tolerance |
|---|---|---|
| ≤ 1½" | ±0.4 mm | +20% / -12.5% |
| 2" – 4" | ±0.8 mm | +20% / -12.5% |
| 5" – 8" | ±1.6 mm | +20% / -12.5% |
| 10" – 18" | ±2.4 mm | +20% / -12.5% |
| ≥ 20" | ±3.2 mm | +20% / -12.5% |
Straightness: 0.2% of length maximum
Ovality: Within diameter tolerance
ASTM A53 vs. A106 – Critical Differences for Seamless Pipe
| Feature | ASTM A53 Seamless | ASTM A106 Seamless | Why It Matters |
|---|---|---|---|
| Temperature limit | ≤ 150°C | ≤ 538°C | A53 seamless pipe not for high-temp service |
| Killed steel | Optional | ✅ Mandatory | A106 has finer grain structure for high temp |
| Hydrotest | ✅ 100% | ✅ 100% | Both fully tested |
| Impact testing | ❌ Not required | ⚠️ Optional | A106 can be impact-tested |
| Typical use | Structural, mechanical | Power, refinery, process | Choose based on application |
| Cost | Lower | Higher | A53 seamless pipe more economical |
Select ASTM A53 seamless pipe for: structural framing, handrails, scaffolding, compressed air lines, water piping, and galvanized applications.
Select ASTM A106 for: steam lines, boiler piping, refinery process lines, and continuous service above 150°C.
Galvanized ASTM A53 Seamless Pipe
Hot-dip galvanized ASTM A53 seamless pipe is available for outdoor or corrosive environments. Galvanizing per ASTM A123:
| Feature | Specification |
|---|---|
| Coating thickness | 85 μm average (min 70 μm local) |
| Finish | Bright, spangled or matte |
| Ends | Plain, threaded, or beveled |
| Applications | Fire protection systems, outdoor structures, fencing |
Galvanized ASTM A53 seamless pipe is commonly used in fire sprinkler systems (NFPA 13 compliant).
Applications – Where ASTM A53 Seamless Pipe Is Used
| Industry | Application | Grade | Typical Size |
|---|---|---|---|
| Construction | Handrails, guardrails, scaffolding | A53 Gr B | 1½" – 4" Sch 40 |
| Mechanical | Equipment frames, machine parts | A53 Gr B | 2" – 8" Sch 40/80 |
| Utility piping | Compressed air, plant water, low-pressure steam (<150°C) | A53 Gr B | ½" – 6" Sch 40 |
| Fire protection | Sprinkler systems (galvanized) | A53 Gr B | 1" – 6" Sch 40 |
| Oilfield | Non-critical flowlines, casing spacers | A53 Gr B | 4" – 10" Sch 40 |
| Structural | Columns, trusses, bracing | A53 Gr B | 4" – 12" Sch 40 |
| Fencing | Posts, rails (galvanized) | A53 Gr A/B | 2" – 4" Sch 40 |
Not recommended for: sour service (H₂S), cryogenic temperatures, high-pressure critical systems, or continuous service above 150°C.
Quality Assurance – Every A53 Seamless Pipe Order Includes
| Test / Document | Standard / Requirement |
|---|---|
| Chemical analysis | ASTM A751 – per heat of A53 seamless pipe |
| Tensile testing | ASTM A370 – per heat of A53 seamless pipe |
| Flattening test | ASTM A450 – per lot of A53 seamless pipe |
| Hydrostatic testing | 100% of A53 seamless pipe – pressure held ≥5 seconds |
| Dimensional inspection | OD, wall, length, straightness – 100% of A53 seamless pipe |
| Visual inspection | Surface defects, end finish – 100% of A53 seamless pipe |
| NDT (optional) | Eddy current or ultrasonic upon request |
Documentation provided with every ASTM A53 seamless pipe order:
-
EN 10204 Type 3.1 Mill Test Certificate – heat-specific
-
Dimensional inspection report
-
Certificate of compliance to ASTM A53/A53M-24
-
Galvanizing test reports (if applicable)
Third-party inspection: SGS, BV, LR, DNV, TÜV – available upon request.
Why Engineers Choose Shenlong for ASTM A53 Seamless Pipe
| Factor | What It Means for Your A53 Seamless Pipe |
|---|---|
| 30+ years experience | Supplying ASTM A53 seamless pipe to construction, mechanical, and fire protection projects worldwide |
| Stock in Tianjin | A53 seamless pipe NPS ½"–18", Sch 10 to XXS – ready to ship |
| Full traceability | Every A53 seamless pipe tracked from heat number to your project |
| 100% hydrotested | Each A53 seamless pipe pressure-tested – not just lot-based |
| Galvanizing available | Hot-dip galvanized A53 seamless pipe for outdoor applications |
| Custom lengths | Cut to your exact requirements |
| Third-party inspection | SGS, BV, LR, DNV, TÜV – available on request |
Case Study: Fire Sprinkler System – Commercial Complex
Project: 20-story commercial tower – fire sprinkler system
Requirement: 4" and 6" ASTM A53 Grade B seamless pipe, Schedule 40, hot-dip galvanized, with threaded ends
Challenge: NFPA 13 compliance, fast delivery, strict inspection
Solution: Supplied galvanized A53 seamless pipe from stock with full MTRs and third-party inspection
Outcome: Pipe passed inspection; system commissioned on schedule
FAQ – ASTM A53 Seamless Pipe
What is the difference between ASTM A53 Type S and Type E/F?
Type S is seamless pipe – manufactured without a weld seam. Type E is electric-resistance welded, and Type F is furnace-welded. ASTM A53 seamless pipe (Type S) provides uniform strength in all directions and is preferred for bending, cyclic loading, and applications where a weld seam is undesirable.
What is the temperature limit for ASTM A53 seamless pipe?
ASTM A53 seamless pipe is suitable for service up to 150°C (300°F) . For continuous service above this temperature, specify ASTM A106 seamless pipe. ASME B31.1 (Power Piping) does not permit A53 for high-temperature service.
Can ASTM A53 seamless pipe be galvanized?
Yes. ASTM A53 seamless pipe is commonly hot-dip galvanized per ASTM A123 for outdoor or corrosive environments. Galvanized A53 seamless pipe is widely used in fire protection systems (NFPA 13 compliant) and outdoor structures.
What is the difference between ASTM A53 Grade A and Grade B?
Grade B has higher strength (240 MPa yield vs 205 MPa) and is more commonly stocked. Grade A is sometimes specified for applications requiring higher ductility. Most projects specify A53 Grade B seamless pipe.
Is ASTM A53 seamless pipe suitable for pressure applications?
Yes, for low-pressure applications. ASTM A53 seamless pipe is hydrostatically tested and suitable for service up to the pressure ratings defined in ASME B31.9 (Building Services Piping). For high-pressure systems, consult design codes.
What documentation is provided with A53 seamless pipe?
EN 10204 Type 3.1 Mill Test Certificate, dimensional inspection report, and certificate of compliance to ASTM A53. Galvanizing test reports provided if applicable.
What is the minimum order quantity for A53 seamless pipe?
| A53 Seamless Pipe Size Range | Quantity |
|---|---|
| NPS ½" – 4" | 5 tons per size |
| NPS 6" – 12" | 10 tons per size |
| NPS 14" – 18" | 15 tons per size |
Smaller quantities of ASTM A53 seamless pipe may be available from stock – please inquire.
ASTM A53 seamless pipe – structural and mechanical reliability, ready to ship.
