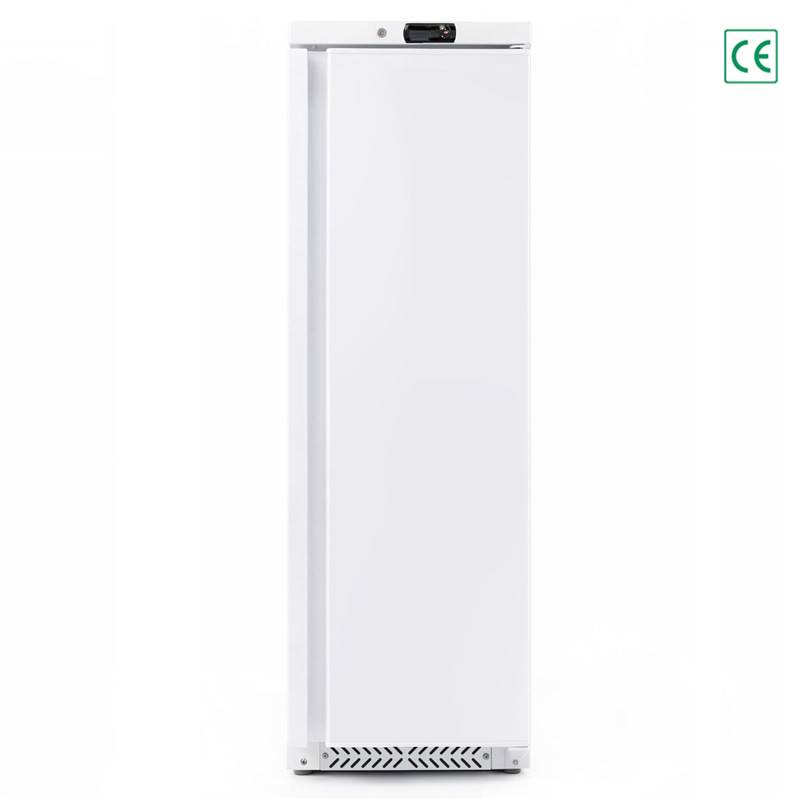

Commercial Upright Refrigerator & Freezer, Heavy‑Duty Vertical Cabinet for Restaurant & Catering SR40/SR40V/SF40V

A catering use upright chiller freezer provides a practical storage solution by combining vertical storage design, organized shelving, and dedicated temperature control. Compared with traditional chest-style refrigeration equipment, an upright model makes it easier to organize ingredients and access stored products without moving other items.

The SR Series and SF Series catering upright refrigerators and freezers offer several capacity options for different commercial food storage requirements. With multiple models, refrigeration and freezing configurations, and practical interior features, they can support a variety of professional foodservice environments.

1. Understanding the SR and SF Upright Chiller Freezer Series

The product range includes three main cabinet sizes: SR20, SR40, and SR60. These models are designed for different storage capacities and kitchen space requirements.

The SR models are upright chillers with a temperature range of 0°C to +8°C, suitable for refrigerated food storage. The SF models are upright freezers designed for a lower temperature range of -18°C to -22°C.

The main specifications are summarized below:

The SR20 series is a compact option for kitchens with limited floor space or relatively modest storage requirements. Its dimensions make it suitable for smaller commercial foodservice operations.

The SR40 series provides a larger storage volume while maintaining a relatively narrow cabinet width. It can be considered for restaurants, cafés, and catering kitchens that require more organized refrigerated or frozen storage.

The SR60 series offers the largest capacity among the three main sizes. With a 630 L chiller capacity and a 565 L freezer capacity for the listed SF60V configuration, it is suitable for commercial kitchens with higher ingredient storage demands.

Actual specifications and available configurations should be confirmed for each individual model.

2. Chiller and Freezer Options for Different Food Storage Needs

One important consideration when selecting commercial refrigeration equipment is whether the kitchen requires chilled storage, frozen storage, or both.

Upright Chiller: 0°C to +8°C

The SR series operates within a temperature range of 0°C to +8°C. This range is suitable for many types of refrigerated food ingredients, depending on their specific storage requirements.

Typical applications include:

• Fresh vegetables and fruits

• Dairy products

• Prepared ingredients

• Chilled food supplies

• Other temperature-sensitive catering ingredients

The upright design allows kitchen staff to arrange different ingredients on separate shelves, helping improve storage organization and daily workflow.

Upright Freezer: -18°C to -22°C

The SF series is designed for frozen food storage, with a specified operating temperature range of -18°C to -22°C.

It can be used for storing frozen meat, seafood, prepared foods, and other products that require frozen conditions.

The SR and SF series allow foodservice operators to select refrigeration equipment according to their actual storage requirements. For businesses that need both chilled and frozen storage, using separate chiller and freezer units can also help establish a more organized kitchen storage system.

3. Reliable Refrigeration Components and Temperature Control

The refrigeration system is a key factor affecting the performance of a commercial upright chiller freezer.

According to the supplied specifications, the SR20, SR40, and SR60 chiller configurations use GMCC compressors, Carel thermostats, and R600a refrigerant.

For the listed SF40V and SF60V freezer configurations, Cubigel compressors and R290 refrigerant are specified.

These component configurations provide buyers with useful reference points when evaluating refrigeration equipment.

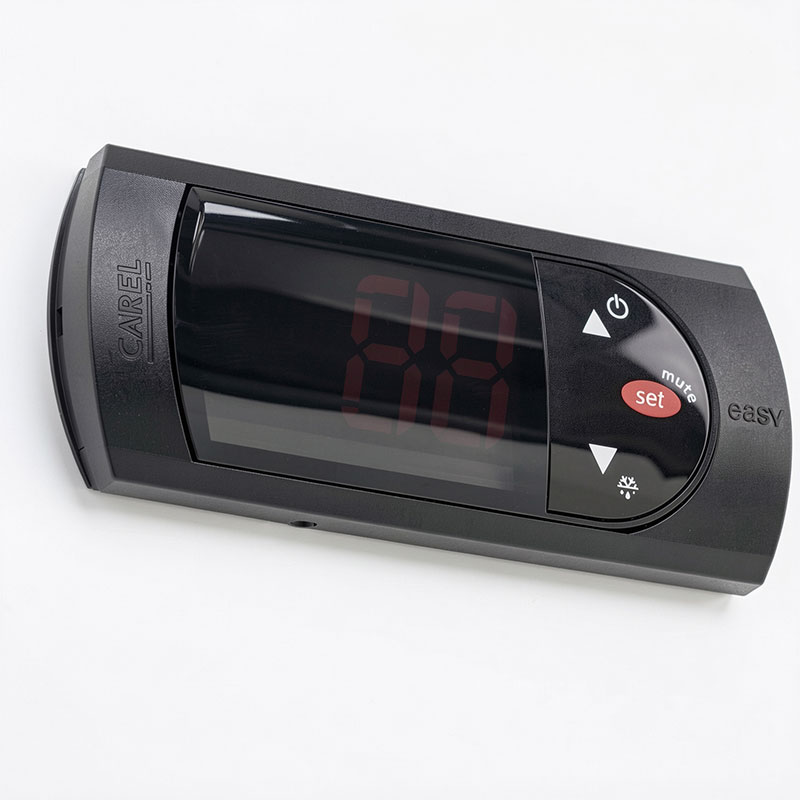

Digital Thermostat for Convenient Temperature Adjustment

The product features a digital thermostat that allows users to monitor and adjust the cabinet temperature more conveniently.

In commercial kitchens, temperature management is important because different ingredients have different storage requirements. A digital control system makes it easier for operators to check the set temperature and manage routine refrigeration operations.

For professional foodservice applications, buyers should also confirm the temperature control accuracy, temperature recovery performance, and alarm functions available on the selected model.

R600a and R290 Refrigerants

The listed chiller configurations use R600a refrigerant, while the specified SF40V and SF60V freezer configurations use R290.

Both are hydrocarbon refrigerants with low global warming potential compared with many conventional refrigerants. However, they are flammable and require refrigeration systems designed and installed in accordance with applicable safety standards.

Buyers should verify refrigerant specifications, equipment compliance, and local installation requirements before purchasing.

4. Practical Interior Design for Commercial Food Storage

Refrigeration capacity is important, but the internal design also affects how efficiently kitchen staff can use the equipment.

The SR and SF series incorporate several practical features intended to improve everyday operation.

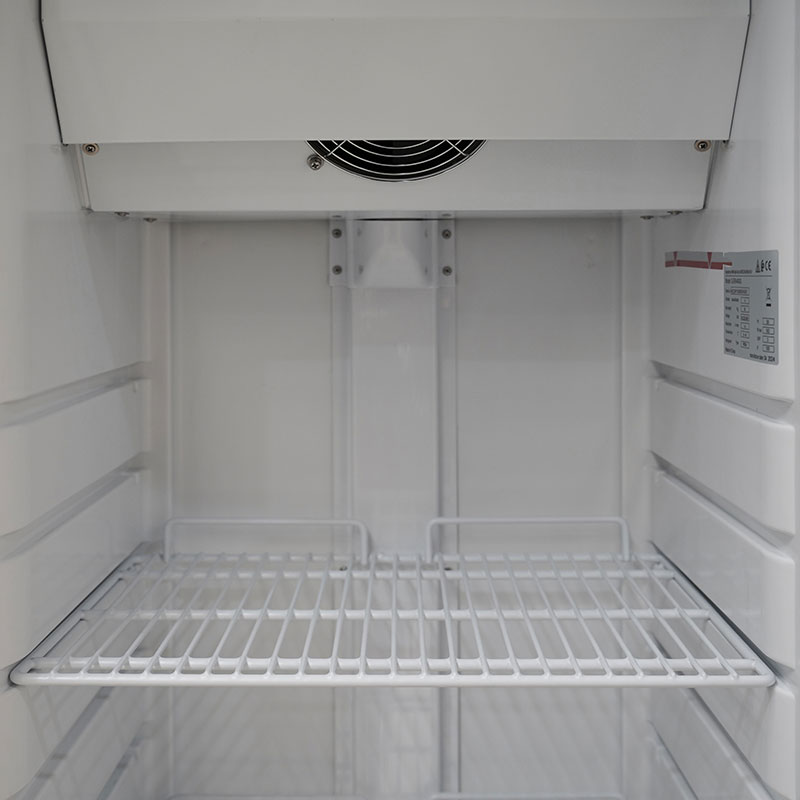

ABS Interior

The product range is described as having an ABS interior. ABS is commonly used in refrigeration cabinet interiors because it provides a practical, smooth surface for everyday cleaning and use.

A well-designed interior helps foodservice operators maintain an organized storage environment and carry out routine cleaning more conveniently.

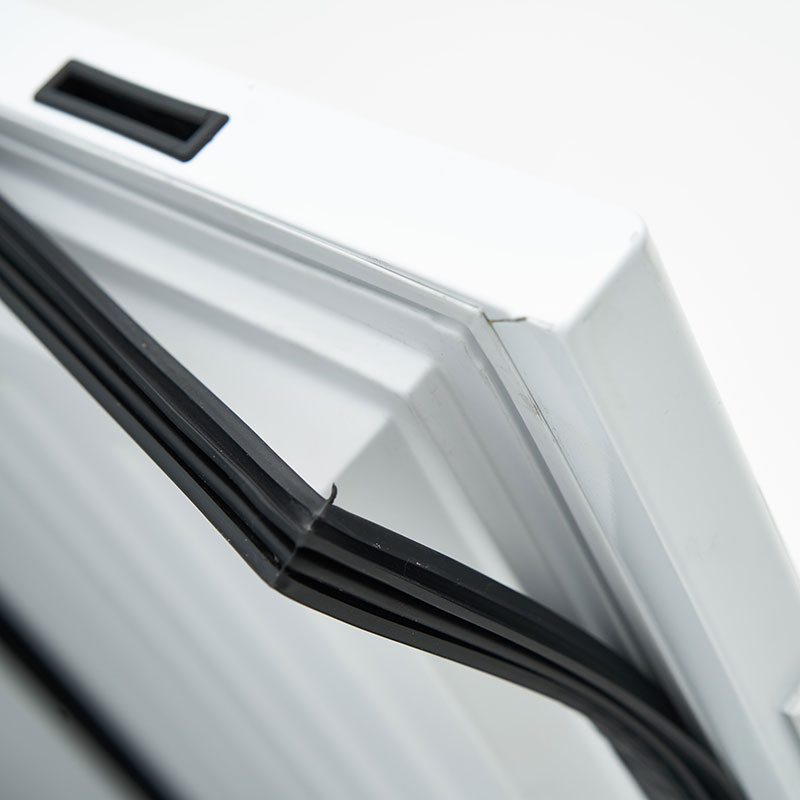

Removable Door Gasket

The removable gasket is another useful design feature.

Door gaskets help maintain a tight seal between the cabinet and the door. Over time, frequent opening, closing, and cleaning can cause gaskets to accumulate dirt or become worn.

A removable design makes inspection, cleaning, and replacement more convenient, helping operators maintain proper door sealing.

A damaged or poorly fitted gasket can allow cold air to escape and increase the workload on the refrigeration system. Regular inspection is therefore an important part of preventive maintenance.

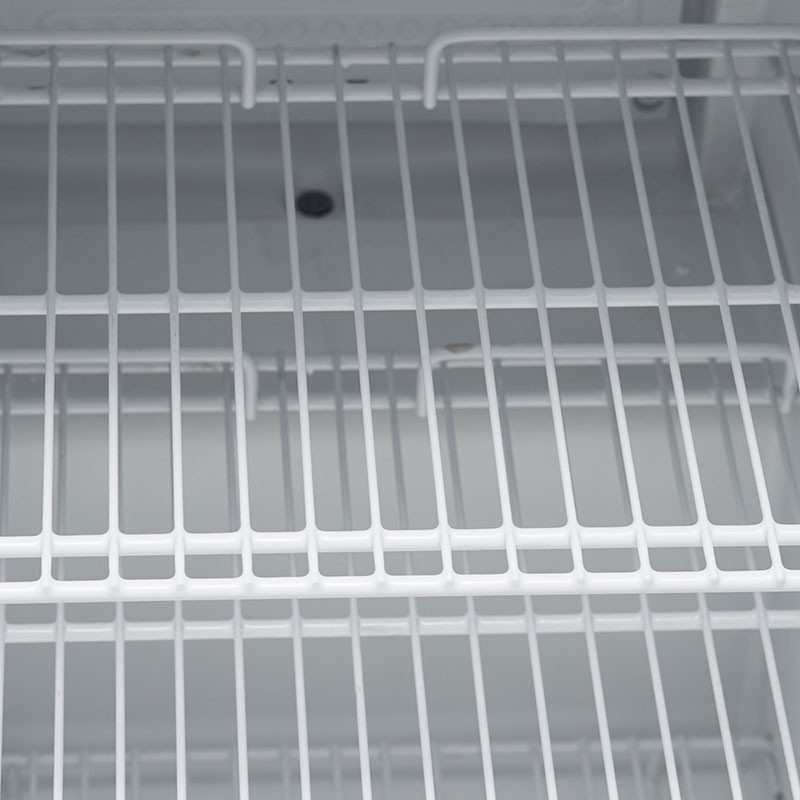

Shelves with Narrow Wire Spacing

The shelving system uses a relatively narrow distance between wires to provide better support for stored goods.

This design helps reduce the possibility of small containers or packaged ingredients slipping through shelf openings. It also allows users to organize food products according to size, category, or frequency of use.

For restaurants and catering businesses, practical shelving can improve stock visibility and make ingredient handling more efficient.

5. How to Choose the Right Model for Your Kitchen

Choosing a commercial upright chiller freezer requires consideration of storage volume, available installation space, food types, and daily operating requirements.

Here are several factors worth evaluating before placing an order.

1. Storage Capacity

Estimate the volume of ingredients that need to be stored during normal operations and peak business periods. The SR20 is suitable for more compact storage needs, while the SR40 and SR60 provide larger capacities.

2. Chilling or Freezing Requirements

Choose the SR series for refrigerated storage within the specified 0°C to +8°C range, or the SF series for frozen storage within the specified -18°C to -22°C range.

3. Available Kitchen Space

Measure the installation area carefully, including cabinet width, depth, and height. Remember to leave sufficient clearance for ventilation, door opening, and maintenance access according to the manufacturer's installation instructions.

4. Refrigeration Components

Check the compressor, thermostat, refrigerant type, and electrical requirements of the exact model. Different configurations may use different refrigeration components.

5. Cleaning and Maintenance

Features such as removable gaskets, accessible shelves, and practical interior surfaces can simplify routine cleaning and maintenance.

6. Transportation and Container Loading

For importers, distributors, and commercial kitchen equipment suppliers, container loading capacity is also an important purchasing consideration.

Based on the supplied figures, the SR20 series can load 108 units in a 40-foot container, the SR40 series 54 units, and the SR60 series 42 units. Actual loading quantities may vary depending on packaging dimensions, loading arrangements, and container specifications.

6. Applications in Commercial Foodservice Environments

Catering upright chillers and freezers are used in a wide range of foodservice environments where organized and accessible ingredient storage is necessary.

Restaurants: Separate chiller and freezer units help restaurants organize fresh ingredients and frozen supplies for daily food preparation.

Hotels: Hotel kitchens and foodservice departments often need different storage capacities to support restaurants, banquet services, and catering operations.

Catering Companies: Catering businesses can use larger-capacity upright units to store ingredients and prepared food supplies before service.

Cafés and Bakeries: Compact upright refrigeration equipment can help store dairy products, fillings, ingredients, and other temperature-sensitive supplies.

Commercial Kitchens: Centralized food preparation facilities can select different cabinet sizes according to their storage volume and workflow requirements.

Conclusion

Selecting the right catering use upright chiller freezer is an important decision for commercial kitchens. The equipment must provide suitable storage capacity, stable temperature management, convenient internal organization, and practical maintenance features.

The SR20, SR40, and SR60 series offer different cabinet sizes and storage capacities, while the SR chiller and SF freezer configurations address different food storage requirements. Features such as digital thermostats, removable door gaskets, ABS interiors, and closely spaced wire shelves support convenient daily operation.

For restaurants, hotels, catering companies, and commercial kitchen equipment distributors, evaluating the exact model specifications and matching them with actual storage needs is the best way to select an appropriate upright refrigeration solution.
