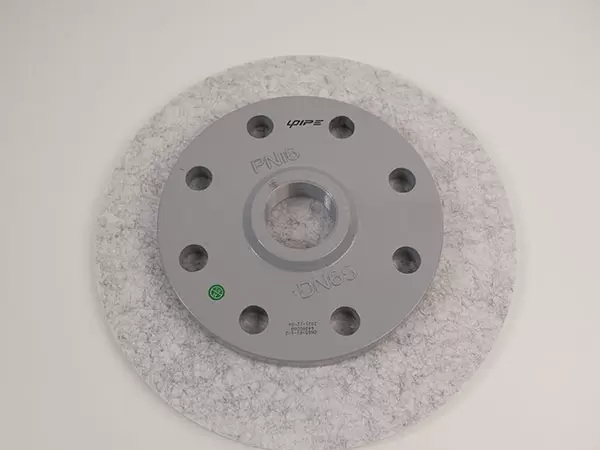

Female Flange

Product Overview

The Female Flange is a high-performance connection component designed for modern fluid transport systems, particularly in compressed air and industrial gas distribution networks. Engineered for durability, sealing reliability, and installation efficiency, it is widely used in aluminum piping systems such as those provided by UPIPE.

This Female Flange is suitable for a variety of industrial environments, offering strong compatibility with modular piping systems and ensuring stable operation under demanding working conditions.

Application Scope

The Female Flange is designed to support multiple transportation media, making it a versatile solution for industrial fluid systems:

• Compressed air systems

• Vacuum pipelines

• Inert gas transmission (helium, nitrogen, argon, etc.)

It is ideal for use in manufacturing plants, automation systems, and energy-efficient compressed air networks.

Technical Specifications

• Working Pressure: 16 bar

• Working Temperature Range:

• Standard: -20°C to +80°C

• Extended: -60°C to +180°C

• Material Options:

• Sprayed aluminum alloy

• Stainless steel

• Engineering plastics

These material configurations ensure high mechanical strength, corrosion resistance, and adaptability to different industrial environments.

Product Parameters

Key Features and Advantages

High Safety and Reliability

Designed for stable operation under 16 bar pressure, the Female Flange ensures secure connections and minimizes leakage risks in compressed air systems.

Fast and Convenient Installation

Compatible with modular aluminum piping systems, enabling quick assembly and disassembly without complex welding processes.

Energy Efficiency

Smooth internal connections reduce airflow resistance, helping maintain pressure stability and improve overall system efficiency.

Corrosion Resistance and Clean Performance

Aluminum and stainless steel materials prevent rust and contamination, ensuring clean air delivery for sensitive industrial applications.

System Advantages

• Safety and operational reliability

• Quick installation and maintenance

• Energy-saving performance

• Clean and corrosion-resistant internal structure

These advantages make the Female Flange an essential component in modern compressed air and gas distribution systems.

Quality Assurance

Products from Suzhou Jieyou Fluid Technology Co., Ltd. are backed by a 10-year quality guarantee. Within ten years after installation, testing, and acceptance, products are eligible for free repair or replacement under standard warranty conditions.

Warranty Exclusions

The warranty does not cover damage or failures caused by:

• Expiration of the warranty period without an extended agreement

• Improper installation, storage, or usage outside specified guidelines

• Failure to follow product manuals or maintenance instructions

• Operation in unsuitable environments (extreme temperatures, corrosive conditions, or physical impact)

Company Introduction

Suzhou Jieyou Fluid Technology Co., Ltd., established in 2019, is an innovative enterprise specializing in the research, development, production, and installation of fluid transport systems. Its core product lines include Upipe aluminum piping systems and Liq-pipe solutions.

The company serves a wide range of sectors, including industrial, civil, and military applications, with exports spanning the United States, Europe, Southeast Asia, the Middle East, and Africa. With certifications such as ISO 9001, ISO 14001, and CE, along with multiple patents, it ensures high standards in product quality and engineering performance.

Conclusion

The Female Flange is a critical component in high-performance compressed air and gas pipeline systems. With its robust construction, flexible specifications, and compatibility with modern aluminum piping networks, it provides a reliable, efficient, and long-lasting solution for industrial fluid transport applications.
