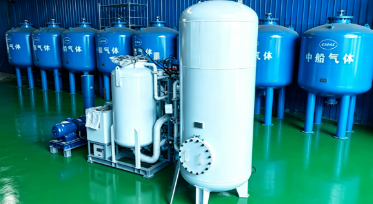

The modular VPSA oxygen plant is designed to provide reliable, energy-efficient oxygen production for industrial and specialized applications. Using ambient air as its raw material, the system separates oxygen and nitrogen through high-selectivity solid adsorbents, delivering an oxygen capacity of 300–1000 Nm³/h per unit and an oxygen concentration of 80%–93%.

With automated operation, modular configuration, and customizable plant design, this VPSA oxygen generation system offers a practical solution for businesses seeking a dependable on-site oxygen supply.

Product Specifications

Product Overview

The modular VPSA oxygen plant uses vacuum pressure swing adsorption (VPSA) technology to produce oxygen from ambient air. High-selectivity solid adsorbents separate nitrogen from oxygen through a controlled adsorption and desorption process.

Equipped with lithium-based molecular sieves and proprietary technologies, the system is designed to improve energy efficiency across different capacity models.

Its modular configuration supports customized plant layouts and installation requirements, making it suitable for industrial facilities and specialized oxygen supply projects.

Applications of the Modular VPSA Oxygen Plant

Industrial Applications

Steel and Metallurgy

The plant can supply oxygen for oxygen-enriched combustion in blast furnaces and metal smelting processes, supporting industrial production requirements.

Chemical and Environmental Industries

Oxygen can be supplied to ozone generators used in wastewater and solid waste treatment, as well as oxygen-enriched cracking furnaces and other compatible industrial processes.

Glass and Construction Materials

The system can provide oxygen for glass kilns and oxygen-enriched combustion in cement rotary kilns, helping support process efficiency.

Specialized Applications

High-Altitude and Remote Locations

The modular design can support oxygen supply projects in dispersed locations, including mining areas and border stations, subject to site conditions and application requirements.

Supplementary Medical Applications

The plant may be considered for supplementary medical oxygen projects where the system's output, purity, applicable standards, and certification requirements meet the intended use. Medical applications require appropriate system specifications and regulatory compliance.

Key Advantages of the VPSA Oxygen Generation System

The modular VPSA oxygen plant offers several potential advantages over conventional oxygen production solutions:

• Automated Operation: Integrated controls support automatic operation and simplified system management.

• Flexible Capacity: Modular configurations accommodate different oxygen demand requirements.

• Energy Efficiency: Lithium-based molecular sieves and proprietary technologies are designed to improve energy performance.

• Rapid Start and Stop: The system supports flexible operation according to oxygen demand and operating conditions.

• Reduced Labor Requirements: Automation helps reduce routine operator involvement.

• Compact Installation: A modular layout can help optimize the available installation space.

• Customizable Design: Plant configuration and technical standards can be adapted to project requirements.

Actual energy consumption, operating costs, and return on investment depend on oxygen demand, operating conditions, local energy prices, and the selected system configuration.

Core Technologies

Advanced Adsorption Tower Design

The adsorption tower integrates multiple patented technologies and can be customized to meet specific operating requirements.

Its design focuses on structural integrity, adsorption efficiency, and reduced operating noise and vibration. These features help support stable performance during continuous oxygen production.

High-Performance Valve System

The system uses dual-offset, bidirectional, soft-sealed butterfly valves at key positions. Patented valve technologies are designed to improve sealing performance and service life while supporting the frequent switching cycles required by VPSA oxygen generation.

Reliable valve operation is essential for maintaining the adsorption cycle and supporting consistent system performance.

Intelligent Automation and Control

The plant's automated control system coordinates the adsorption and desorption processes to support efficient oxygen production. With appropriate configuration, automation can reduce routine manual intervention and support remote or unmanned management.

Operators receive basic training for commissioning and routine maintenance, while specialized technical support may be required for more complex service tasks.

VPSA Oxygen Plant vs. Cryogenic Oxygen Plant

VPSA and cryogenic oxygen production technologies serve different operating requirements. The most suitable option depends on required oxygen purity, capacity, energy consumption, and project economics.

Potential advantages of a VPSA system include:

• Lower energy consumption in suitable operating ranges

• A more compact installation footprint

• Reduced routine labor requirements

• Automated operation and simplified management

• Flexible operation for changing oxygen demand

• Potentially simpler project implementation, depending on local regulations

Cryogenic oxygen plants may be more appropriate when very high oxygen purity or larger production capacities are required. A technical and economic assessment should be conducted before selecting either technology.

Installation Requirements and Project Delivery

The modular VPSA oxygen plant is designed to simplify site preparation. The basic site requirement is leveled, hardened ground, with additional civil works and plant construction determined by the project's layout and user requirements.

The typical service process includes:

1. Inquiry and requirement confirmation

2. Technical proposal development

3. Preliminary design

4. Initial quotation

5. Contract signing

6. Detailed engineering design

7. Equipment supply

8. Installation and commissioning

The typical delivery period is approximately five months, although the schedule may be adjusted according to project complexity, customization, and delivery requirements.

Equipment is prepared using seaworthy export packaging to support international transportation.

Operation and Maintenance

The VPSA oxygen plant is designed for automated operation with relatively straightforward routine maintenance. After commissioning and basic operator training, routine activities may include system monitoring, inspection of operating parameters, and scheduled maintenance.

Maintenance requirements depend on operating conditions, equipment configuration, and manufacturer recommendations. Regular inspection of valves, adsorption components, filters, and control systems helps support long-term performance.

Customize Your Modular VPSA Oxygen Plant

The modular VPSA oxygen plant provides an adaptable solution for industrial oxygen production, combining adsorption technology, automated controls, and flexible plant design.

With a capacity of 300–1000 Nm³/h per unit and an oxygen concentration of 80%–93%, it can be configured for suitable metallurgy, chemical processing, environmental treatment, glass manufacturing, and specialized oxygen supply projects.

Contact our team to discuss your required oxygen capacity, target concentration, site conditions, applicable standards, and customization needs for your next oxygen generation project.
