QC11Y-6×3200 Hydraulic Guillotine Shearing Machine with E21S Controller

Product Overview

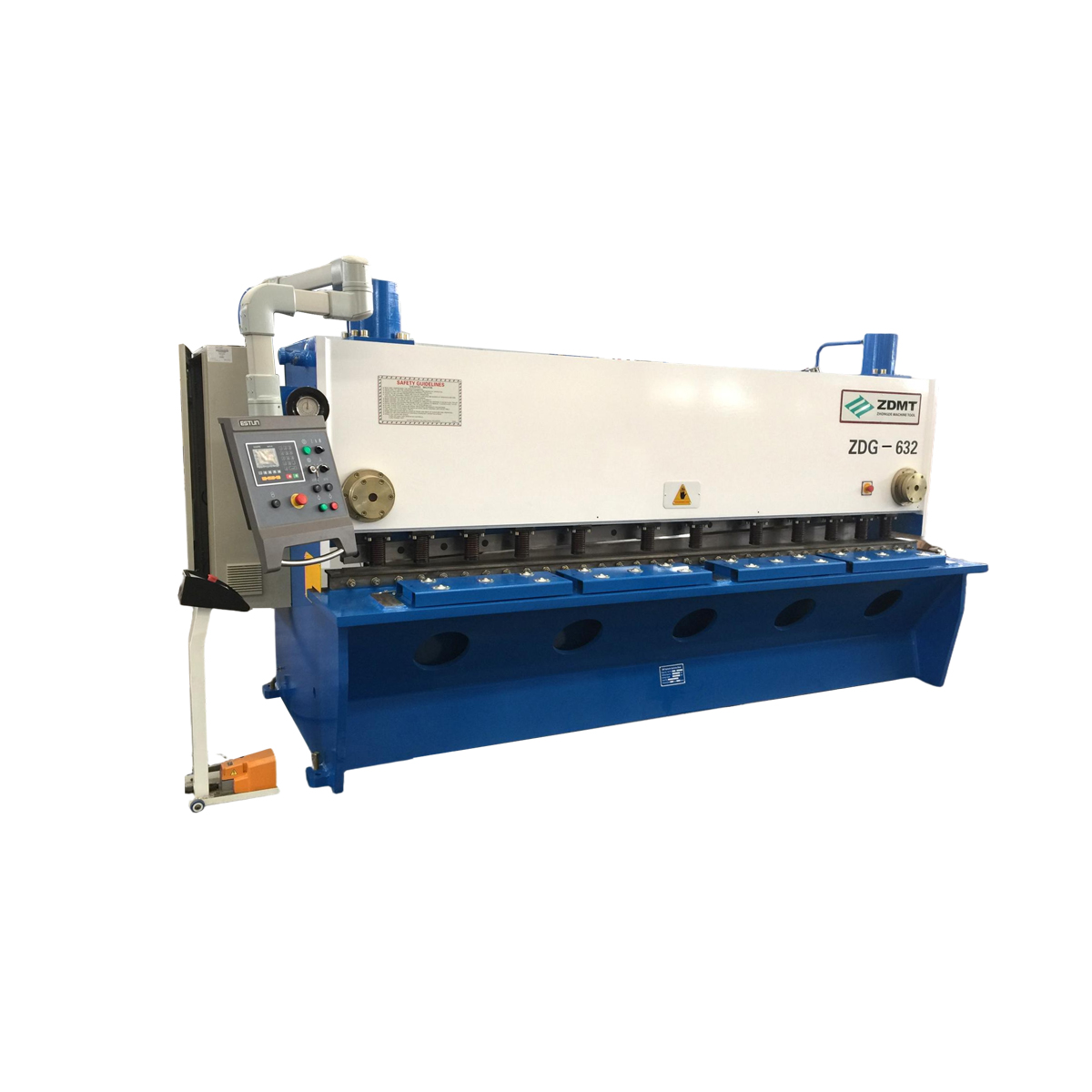

The QC11Y-6×3200 Hydraulic Guillotine Shearing Machine, model ZDG-632, is designed for sheet metal cutting operations in industrial manufacturing and metal fabrication. With a maximum cutting thickness of 6 mm and a maximum cutting length of 3200 mm, it provides a practical solution for processing metal sheets into the required dimensions.

The machine features a welded steel frame, a three-point guide trolley system, and an Estun E21S controller for backgauge positioning. These components support stable machine movement and accurate sheet positioning during cutting operations. A ball-supported worktable helps reduce friction when feeding metal sheets, while the hold-down clamps secure the material during shearing.

Both the upper and lower blades feature four cutting edges, allowing the edges to be changed as they wear and helping extend blade service life. A protective fence around the working area provides an additional safety barrier while allowing operators to observe the cutting position.

The QC11Y series is available in multiple cutting capacities to accommodate different sheet thicknesses and processing lengths, making it suitable for workshops and manufacturers with varying metal fabrication requirements.

Main Features and Benefits

Rigid Welded Steel Construction

The machine adopts a welded steel frame designed to provide structural stability during shearing operations. Its stress-relieved construction helps reduce residual stress in the frame and supports consistent operation.

Three-Point Guide System

Three guide trolleys guide the movement of the shearing mechanism, helping maintain controlled movement and achieve consistent cutting results.

Estun E21S Backgauge Control

The Estun E21S controller manages backgauge movement, enabling operators to position sheet metal accurately before cutting. This helps streamline repetitive cutting tasks and improves positioning efficiency.

Convenient Sheet Feeding

The ball-supported worktable reduces contact friction between the sheet metal and the work surface, making it easier to move material into position. High-quality hold-down clamps help secure the workpiece during the cutting process.

Four-Edge Cutting Blades

The upper and lower blades each have four usable cutting edges. Rotating to another cutting edge when appropriate helps make better use of the blades and reduce unnecessary replacement frequency.

Protective Working Area

A basic protective fence surrounds the shearing area to provide a physical safety barrier while maintaining visibility of the cutting position. Operators should follow the machine's operating procedures and applicable workplace safety requirements.

Technical Specifications

The QC11Y hydraulic guillotine shear series offers several configurations for different cutting thicknesses and sheet widths. The following specifications are based on the supplied product information.

Note: Confirm the final machine configuration, dimensions, weight, and controller specifications with the supplier before ordering. The supplied product information lists an optional control system but does not specify all available alternatives.

Typical Applications

The QC11Y hydraulic shearing machine is suitable for sheet metal cutting processes across a range of manufacturing sectors.

• Mechanical Manufacturing: Cutting steel sheets for machine parts, fabricated components, and general industrial equipment.

• Automotive Production: Preparing sheet metal blanks and panels for automotive component manufacturing.

• Shipbuilding: Cutting metal plates used in selected ship structures and fabrication processes.

• Aerospace-Related Manufacturing: Processing sheet metal for instrument panels, electrical enclosures, and other components where the material and cutting requirements are compatible with the machine's capacity.

• Metallurgical Processing: Performing preliminary sheet cutting and material preparation.

• Architectural Metalwork and Decoration: Cutting stainless steel sheets, structural steel components, and metal materials used in fabrication and decorative applications.

Material type, thickness, cutting length, and required dimensional tolerances should be evaluated when selecting a suitable machine configuration.
