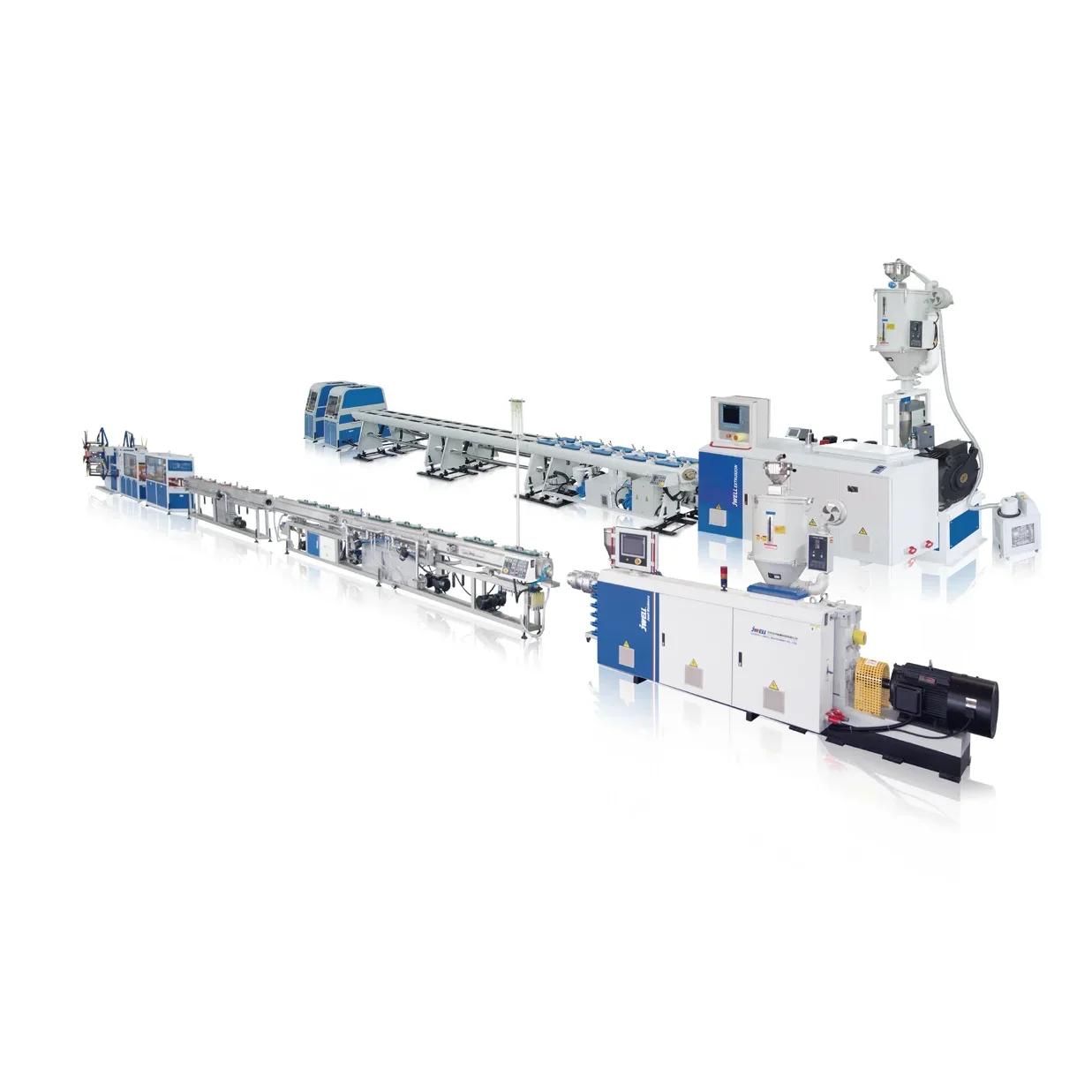

Small-diameter PE/PPR/PE-RT/PA Pipe Extrusion Line

Overview of small-diameter pipe extrusion technology

The PE/PPR/PE-RT/PA single-pipe, dual-pipe extrusion line is designed for manufacturers requiring stable, high-output, and precise pipe production across multiple material types. It is widely used in applications where dimensional accuracy, production efficiency, and material savings are critical.

This extrusion system integrates advanced screw design, optimized flow control, and high-speed downstream equipment to ensure continuous production stability. It supports both single-pipe and dual-pipe configurations, allowing manufacturers to flexibly adjust production capacity according to demand.

Developed by Jwell, the system reflects the engineering direction of jwell machinery, focusing on efficiency, durability, and intelligent control in pipe extrusion solutions.

High-efficiency BM screw design for stable plasticizing performance

At the core of this extrusion line is a BM high-efficiency screw structure, engineered to improve plasticizing quality while maintaining high output rates. The screw geometry enhances material mixing, ensuring uniform melt consistency across PE, PPR, PE-RT, and PA materials.

This design significantly improves energy utilization and reduces material degradation during processing. As a result, pipe quality becomes more stable, and production waste is minimized.

Within jwell extrusion machinery, screw systems are optimized for long-term operation stability, ensuring consistent performance even under continuous high-speed production conditions.

Precise wall thickness control and raw material efficiency

One of the key advantages of this pipe extrusion line is its ability to achieve precise wall thickness control. Through coordinated die systems and intelligent flow regulation, the equipment ensures uniform pipe structure throughout production.

This precision directly reduces raw material waste and improves cost efficiency. Manufacturers benefit from stable product dimensions, which are essential for downstream installation and compatibility requirements.

The integration of metering feeding systems further enhances consistency, ensuring that each pipe segment maintains identical structural characteristics across long production runs.

High-speed dual-pipe extrusion capability and space optimization

The dual-pipe configuration allows simultaneous production of two pipe lines, effectively doubling output without increasing factory footprint. This makes it an ideal solution for manufacturers with limited production space but high capacity demands.

The system maintains stable extrusion performance even at high speeds, ensuring both pipes maintain identical quality standards. This balance between speed and precision is achieved through synchronized control systems and optimized downstream coordination.

In jwell plastic machinery, dual-line configurations are designed to maximize space utilization while maintaining industrial-grade production stability.

Advanced sizing, cooling, and forming control system

The extrusion line uses a tubular extrusion die system combined with high-speed sizing sleeves, ensuring precise shaping immediately after extrusion. The water film cooling system enhances dimensional stability and improves surface quality.

Integrated flow control valves with scale indicators allow operators to fine-tune cooling and shaping conditions in real time. This ensures consistent pipe roundness and reduces deformation risk during high-speed production.

The combination of cooling and sizing control plays a critical role in maintaining long-term dimensional accuracy, especially in continuous industrial production environments.

Servo-controlled haul-off and cutting system for continuous operation

The downstream section includes a servo-controlled double-belt haul-off unit, which ensures stable traction force during pipe pulling. This prevents deformation and maintains consistent pipe diameter across production cycles.

The system is equipped with high-speed chipless cutting and automatic winding capabilities, enabling fully continuous operation without frequent downtime.

This automation level improves production efficiency and reduces labor dependency, making the system suitable for large-scale industrial pipe manufacturing.

Multi-material compatibility for diverse pipe applications

The extrusion line supports multiple raw materials, including PE, PPR, PE-RT, and PA. This flexibility allows manufacturers to serve different industrial sectors using a single production platform.

Material changeover is simplified through predefined process parameters and temperature adjustment systems. This reduces downtime and improves operational flexibility.

As part of jwell extrusion machinery, multi-material compatibility is a core design principle, ensuring that manufacturers can respond quickly to changing market demands.

Energy efficiency and operational performance optimization

Energy consumption is significantly reduced through optimized screw design and efficient heating control systems. Compared with traditional extrusion equipment, this line achieves lower energy usage per kilogram of output.

Stable thermal management ensures consistent melting performance while avoiding unnecessary energy loss. This contributes to long-term cost reduction and sustainable production operations.

The engineering philosophy behind jwell machinery emphasizes balancing output performance with energy efficiency, making it suitable for modern industrial production requirements.

Technical parameters overview

The system is available in multiple configurations depending on pipe size and output requirements.

These configurations allow manufacturers to select equipment based on production scale and material application requirements.

Quality assurance and production reliability

All equipment is manufactured under strict quality control standards, ensuring long-term operational stability and consistent output performance. Electrical systems support multiple voltage standards, allowing global deployment flexibility.

The system is designed for continuous industrial operation with minimal maintenance requirements, reducing downtime and improving overall production efficiency.

In jwell plastic machinery, reliability and precision are key engineering priorities, ensuring that every production line meets industrial-grade performance expectations.

FAQ

Can the extrusion line process multiple materials?
Yes, it supports PE, PPR, PE-RT, and PA materials with adjustable processing parameters.

How many operators are required?
Typically 2–3 operators are sufficient for full production line control.

Is wall thickness control stable during high-speed operation?
Yes, metering systems and die control ensure consistent wall thickness.

Does the system support dual-pipe production?
Yes, dual-pipe configuration doubles output while maintaining stable quality.

Is global after-sales support available?
Yes, Jwell provides worldwide service centers with fast response support.
