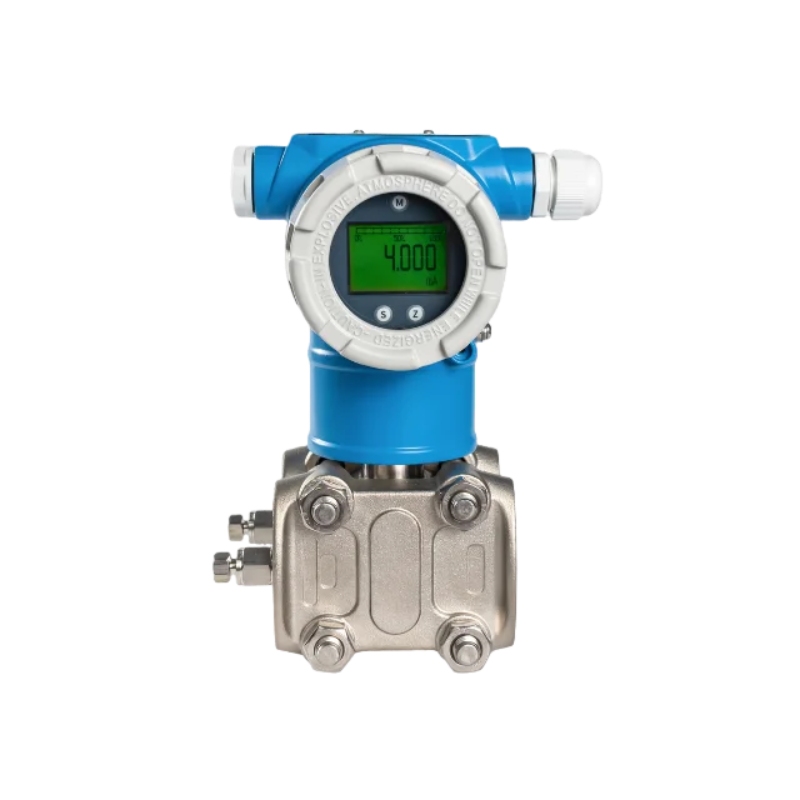

TS1901-DPT High Precision Differential Pressure Transmitter

Product Introduction

TS1901-DPT High Precision Differential Pressure Transmitter is an industrial differential pressure measurement instrument designed for continuous monitoring of pressure differences in liquids, gases, and steam. It uses a fully sealed and fully isolated monosilicon pressure sensor to provide stable measurement performance in demanding process and environmental applications.

With a measuring range from 200Pa to 10MPa and reference accuracy of ±0.075% URL, with ±0.05% URL available as an option, this differential pressure transmitter is suitable for applications requiring reliable and precise pressure measurement. Its robust explosion-proof construction and certified protection make it suitable for use in hazardous areas.

Developed by Danrui Sensors, the TS1901-DPT combines a patented monosilicon sensing structure, double-diaphragm overload protection, ASIC and SMT signal processing, temperature compensation, and a high-strength metal housing for dependable long-term operation.

Key Product Advantages

High-Precision Differential Pressure Measurement

The TS1901-DPT provides a reference accuracy of ±0.075% URL, with an optional ±0.05% URL version for applications requiring higher measurement precision. The sensor is designed for stable differential pressure measurement across a broad operating range.

Patented Monosilicon Pressure Sensor

The fully sealed and fully isolated monosilicon pressure sensor provides reliable sensing performance while helping protect the internal sensing components from demanding industrial environments.

Double-Diaphragm Overload Protection

The double-diaphragm overload protection structure provides strong resistance to excessive pressure and helps the transmitter withstand high overload conditions, improving operational reliability in process applications.

Multiple Signal Outputs

Different communication options are available for system integration, including 4–20mA, 4–20mA/HART, and Modbus-RTU/RS485. Customized output configurations can also be discussed for specific projects.

Temperature and Linearity Compensation

Multiple temperature and linearity compensation technologies help reduce measurement deviations caused by environmental and operating conditions, supporting stable differential pressure measurement.

Convenient Parameter Operation

The transmitter features user-friendly button operation for parameter configuration and allows measured data to be displayed quickly, simplifying local operation and commissioning.

Durable Industrial Housing

A high-strength metal electrical protection housing helps protect the transmitter electronics and supports long-term service in industrial environments.

Explosion-Proof Applications

The TS1901-DPT is designed with reliable explosion-proof construction and electronics for applications in hazardous or Ex areas. Available approvals include CSA, ATEX, IECEx, and NEPSI.

Technical Specifications

Power Supply

For the 4–20mA two-wire configuration, the required power supply is 10.5–55VDC.

For the 4–20mA + HART two-wire configuration, the required power supply is 16.5–55VDC.

The available output and communication configuration can be selected according to the requirements of the control system, PLC, DCS, or other industrial monitoring equipment.

Measuring Media & Applications

The TS1901-DPT High Precision Differential Pressure Transmitter can be applied to differential pressure measurement and related process parameters, including:

• Liquid pressure measurement

• Gas pressure measurement

• Steam pressure measurement

• Flow measurement

• Liquid level measurement

• Density measurement

• Differential pressure monitoring

• Process control

The transmitter is suitable for continuous measurement in industrial process and environmental applications where stable differential pressure monitoring is required.

Industry Applications

Process Control Systems

The transmitter can be integrated into process control systems for continuous pressure, differential pressure, flow, and level monitoring.

Petroleum Industry

Its robust construction and Ex-area suitability make it suitable for pressure and differential pressure measurement in petroleum-related processes.

Chemical Industry

Optional Hastelloy C diaphragm materials can be selected for applications involving corrosive process media, subject to application requirements.

Power Industry

The transmitter can be used for industrial pressure, differential pressure, flow, and process monitoring applications in power generation and related facilities.

Selection Guide by Measuring Medium

Different process media require different diaphragm materials and installation configurations. Selection should be based on media characteristics, temperature, pressure, corrosiveness, viscosity, and crystallization risk.

Corrosive liquids: Hastelloy, tantalum diaphragm, or PTFE-coated isolation options may be considered according to the medium and concentration.

High-temperature media above 100°C: Cooling devices or capillary remote seals may be required to protect the transmitter from excessive process temperature.

Viscous or crystallizing media: Flush diaphragm or flange-type pressure transmitters are recommended where applicable to reduce the risk of impulse line blockage.

General gases and water: Standard stainless steel diaphragm configurations are generally suitable for conventional applications.

Installation & Integration

Before selecting and installing the transmitter, users should confirm the required measuring range, process pressure, media temperature, media compatibility, process connection, output signal, communication protocol, and hazardous-area requirements.

The TS1901-DPT supports commonly used process connections and multiple electrical output configurations, helping facilitate integration into existing industrial measurement and control systems.

B2B Supply & Customization

Danrui Sensors supports standard and customized differential pressure transmitter requirements for industrial users, distributors, system integrators, and engineering projects.

Customization options can include output signal, diaphragm material, process connection, and other configuration requirements. OEM and ODM orders are accepted for suitable projects.

Standard products generally have a lead time of 7–20 days, excluding customized products. Actual delivery time depends on product configuration and order quantity.

Frequently Asked Questions

Q1: What payment methods are accepted?
A: T/T, L/C, and D/P payment methods are available.

Q2: How are the transmitters packaged for shipping?
A: Export cartons and pallets are used for transportation packaging.

Q3: What is the standard lead time?
A: Standard products generally require 7–20 days, excluding customized products.

Q4: Are OEM and ODM orders accepted?
A: Yes. OEM and ODM services are available according to project requirements.

Q5: Can the transmitter measure corrosive media?
A: Yes. Diaphragm options such as Hastelloy C and other customized materials can be selected according to the characteristics of the measured medium.

Q6: Is the TS1901-DPT suitable for high-temperature applications?
A: The media temperature range is -40°C to 120°C. For media above 100°C, suitable cooling devices or remote seal configurations may be required depending on the application.

Q7: Can it be used in hazardous areas?
A: Yes. The transmitter is designed for Ex-area applications and offers CSA, ATEX, IECEx, and NEPSI approvals, along with RoHS and CE compliance.

Why Choose TS1901-DPT?

• 200Pa–10MPa wide measuring range

• ±0.075% URL reference accuracy

• Optional ±0.05% URL accuracy

• Patented fully sealed monosilicon sensor

• Double-diaphragm overload protection

• 4–20mA, HART and RS485/Modbus outputs

• -40°C to 120°C media temperature range

• SUS316L and Hastelloy C diaphragm options

• IP67 protection

• Strong metal housing

• Multiple temperature and linearity compensation

• Suitable for liquid, gas and steam measurement

• CSA, ATEX, IECEx and NEPSI approvals

• OEM/ODM customization available

Product Summary

TS1901-DPT High Precision Differential Pressure Transmitter provides accurate and stable differential pressure measurement for industrial process applications, combining a monosilicon sensor, overload protection, multiple communication options, durable housing, and Ex-area suitability.

For pressure measurement projects involving process control, petroleum, chemical, power, flow, level, or other industrial applications, Danrui Sensors can provide suitable transmitter configurations and technical support based on the required measuring medium and operating conditions.
