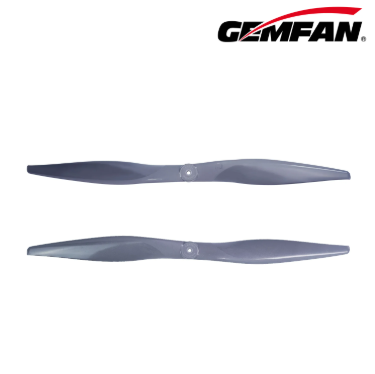

The Vortex 22×10E/R is a two-blade electric fixed-wing propeller designed specifically for medium- to large-sized electric fixed-wing UAV platforms. Made from fiberglass-reinforced nylon, it combines lightweight construction with good structural strength and durability. Its 22-inch diameter and 10-inch pitch, together with an optimized aerodynamic blade profile, provide stable and efficient power output for larger fixed-wing platforms while balancing flight efficiency and endurance.

With a 15.2 mm center thickness and 31.5 mm hub diameter, the propeller offers enhanced overall rigidity. At just 138.1 g per propeller, it helps reduce unnecessary rotational load. The propeller features a 6.35 mm / 0.25-inch center bore and comes with multiple adapter rings in 3 / 3.17 / 4 / 5 / 6 / 8 mm, allowing compatibility with different motor shaft diameters.

It is suitable for medium- and large-sized electric fixed-wing aircraft, industrial UAVs, aerial mapping and surveying platforms, long-endurance fixed-wing UAVs, and other high-performance electric aircraft applications.

Product Specifications

Key Features

1. 22-Inch Large-Diameter Design for Electric Fixed-Wing Propulsion Systems

The 22-inch diameter provides a large propeller disk area, making the Vortex 22×10E/R well suited to medium- and large-sized electric fixed-wing aircraft that require strong and efficient propulsion.

2. Fiberglass-Reinforced Nylon for Strength and Lightweight Performance

The fiberglass-reinforced nylon construction provides a good balance of structural strength, durability, rigidity, and low weight, helping reduce rotational inertia while maintaining reliable performance during flight.

3. Aerodynamic Profile Optimized for Electric Power Systems

The blade profile is optimized for electric propulsion systems, delivering a balance between thrust, efficiency, and power consumption. This makes it suitable for applications where both flight performance and endurance are important.

4. Matte-Finished Leading Edge for Improved High-Speed Aerodynamic Performance

The matte-finished leading edge helps optimize the blade surface characteristics and supports stable aerodynamic performance during high-speed rotation.

5. Precision Dynamic Balancing for High-Speed Stability

Each propeller is subject to strict dynamic balancing control, helping minimize vibration during high-speed operation. This contributes to smoother propulsion-system operation and improved overall flight stability.

6. Anti-Slip Hub Design for Secure Installation

The anti-slip textured hub surface improves contact and installation stability, helping prevent unwanted movement between the propeller and motor during operation.

7. Performance Characteristics of the 22×10 Specification

The 22×10 configuration combines a large 22-inch diameter with a 10-inch pitch, providing a practical balance of thrust, flight efficiency, and endurance for larger electric fixed-wing platforms.

Industries & Applications

Based on its size, material construction, and electric fixed-wing positioning, the Vortex 22×10E/R can be promoted for the following industries and applications:

• Industrial Fixed-Wing UAVs

• Aerial Mapping & Surveying

• Power & Energy Inspection

• Border Security, Surveillance & Patrol

• Agricultural Surveying & Precision Agriculture

• UAV Logistics & Transportation

• Environmental Monitoring

• Research & University UAV Platforms

• Long-Endurance UAVs

• Large-Scale RC Aircraft & Electric Fixed-Wing Aircraft
