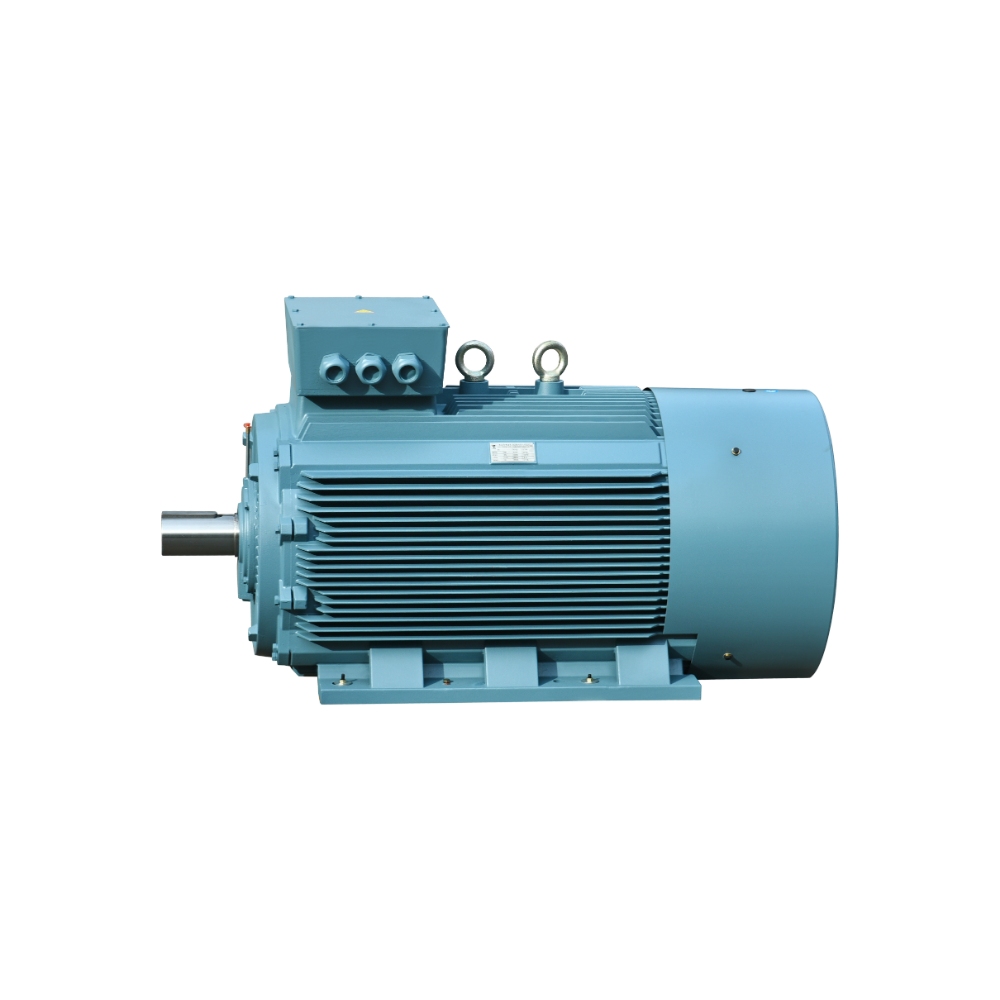

YE3 Three-Phase Asynchronous Motor

YE3 series three-phase asynchronous motors provide the advantages of excellent performance, high efficiency, energy savings, substantial thermal margin, and long service life.

Performance Introduction

The YE3 series motors are high-efficiency and energy-saving three-phase asynchronous motors independently developed by our company. The motor performance complies with GB/T28575 "Technical Conditions for YE3 Series (IP55) Three-phase Asynchronous Motors (Frame Sizes 63-355)" or JB/T10868 "Technical Conditions for YE3 Series (IP55) Three-phase Asynchronous Motors (Frame Sizes 355-400)".  The efficiency value complies with the 3-level energy efficiency standard in GB18613-2020 and is consistent with IE3 in the international standard IEC 60034-30 "Energy Efficiency Classification of Single-Speed Three-phase Squirrel-Cage Induction Motors".

This series of motors delivers exceptional performance, high efficiency, and notable energy-saving capabilities, complemented by a substan- tial temperature rise margin, extended service life, and superior operational reliability. With low vibration, excellent starting characteristics, and an aesthetically refined design, these motors serve as full replacements for the Y, YGM, YGM2, and YE2 series of low-voltage three-phase asynchro- nous motors. They are ideally suited for driving a wide range of equipment including pumps, fans, compressors, and conveyor systems, and are widely employed in energy conservation initiatives, environmental protection projects, and national water conservancy programs.

Application Scenarios

Technical Parameters

Model

Rated

power

Rated

voltage

Rated

current

Rated

speed

Efficiency

Cosφ

Stall torque

Rated torque

Stalled rotor current

Rated current

Maximum torque

Rated torque

Rated

Torque

Noise

Weight

kW

V

A

r/min

η%

%

Tst/Tn

Ist/In

Tmax/Tn

N.m

dB（A）

Kg

Synchronous Speed 3000r/min

YE3-80M1-2

0.75

380

1.7

2880

80.7

0.82

2.3

7.0

2.3

2.4

62

18

YE3-80M2-2

1.1

380

2.4

2880

82.7

0.83

2.2

7.6

2.3

3.5

62

19

YE3-90S-2

1.5

380

3.2

2890

84.2

0.84

2.2

7.9

2.3

4.8

67

23

YE3-90L-2

2.2

380

4.6

2890

85.9

0.85

2.2

7.9

2.3

7.0

67

24

YE3-100L-2

3

380

6.0

2910

87.1

0.87

2.2

8.5

2.3

9.6

74

34

YE3-112M-2

4

380

7.8

2910

88.1

0.88

2.2

8.5

2.3

12.7

77

44

YE3-132S1-2

5.5

380

10.6

2945

89.2

0.88

2.0

8.5

2.3

17.5

79

58

YE3-132S2-2

7.5

380

14.4

2940

90.1

0.88

2.0

8.5

2.3

23.9

79

63

YE3-160M1-2

11

380

20.6

2950

91.2

0.89

2.0

8.5

2.3

35.0

81

124

Model

Rated

power

Rated

voltage

Rated

current

Rated

speed

Efficiency

Cosφ

Stall torque

Rated torque

Stalled rotor current

Rated current

Maximum torque

Rated torque

Rated

Torque

Noise

Weight

kW

V

A

r/min

η%

%

Tst/Tn

Ist/In

Tmax/Tn

N.m

dB（A）

Kg

Synchronous Speed 3000r/min

YE3-160M2-2

15

380

27.9

2950

91.9

0.89

2.0

8.5

2.3

47.8

81

135

YE3-160L-2

18.5

380

34.2

2950

92.4

0.89

2.0

8.5

2.3

58.9

81

150

YE3-180M-2

22

380

40.5

2960

92.7

0.89

2.0

8.5

2.3

70.0

83

161

YE3-200L1-2

30

380

54.9

2970

93.3

0.89

2.0

8.5

2.3

95.5

84

230

YE3-200L2-2

37

380

67.4

2975

93.7

0.89

2.0

8.5

2.3

118

84

256

YE3-225M-2

45

380

80.8

2975

94.0

0.90

2.0

8.0

2.3

143

86

317

YE3-250M-2

55

380

98.5

2970

94.3

0.90

2.0

8.0

2.3

175

89

400

YE3-280S-2

75

380

134

2980

94.7

0.90

1.8

7.5

2.3

239

91

460

YE3-280M-2

90

380

160

2980

95.0

0.90

1.8

7.5

2.3

287

91

530

YE3-280L-2

110

380

195

2980

95.2

0.90

1.8

7.5

2.3

350

92

656

YE3-315S-2

110

380

195

2975

95.2

0.90

1.8

7.5

2.3

350

92

875

YE3-315M-2

132

380

234

2975

95.4

0.90

1.8

7.5

2.3

420

92

965

YE3-315L1-2

160

380

279

2975

95.6

0.91

1.8

7.5

2.3

509

92

1033

YE3-315L2-2

185

380

323

2975

95.7

0.91

1.8

7.5

2.3

589

92

1085

YE3-315L3-2

200

380

349

2975

95.8

0.91

1.8

7.5

2.2

637

92

1085

YE3-315L4-2

220

380

383

2975

95.8

0.91

1.6

7.5

2.2

700

100

1310

YE3-355M1-2

220

380

383

2980

95.8

0.91

1.6

7.5

2.2

700

100

1600

YE3-355M2-2

250

380

436

2980

95.8

0.91

1.6

7.5

2.2

796

100

1670

YE3-355L1-2

280

380

488

2980

95.8

0.91

1.6

7.5

2.2

891

100

1790

YE3-355L2-2

315

380

549

2980

95.8

0.91

1.6

7.5

2.2

1003

100

1820

YE3-355L3-2

355

380

619

2980

95.8

0.91

1.6

7.5

2.2

1130

100

1860

YE3-4001-2

355

380

626

2985

95.8

0.90

1.6

8.6

1.8

1130

101

2625

YE3-4002-2

400

380

705

2985

95.8

0.91

1.6

8.7

1.8

2006

106

3620

YE3-4003-2

450

380

793

2985

95.8

0.90

1.6

8.6

1.8

1273

101

2690

YE3-4004-2

500

380

881

2985

95.8

0.90

1.6

8.6

1.8

1433

105

2735

YE3-4005-2

560

380

976

2985

95.8

0.90

1.6

8.6

1.8

1592

105

3280

YE3-4006-2

630

660

632

2985

95.8

0.91

1.6

8.7

1.8

1783

106

3540

Synchronous Speed 1500r/min

YE3-80M1-4

0.55

380

1.4

1435

80.8

0.75

2.4

6.6

2.3

3.5

56

16

YE3-80M2-4

0.75

380

1.8

1435

82.5

0.75

2.3

6.6

2.3

4.8

56

17

YE3-90S-4

1.1

380

2.6

1440

84.1

0.76

2.3

6.8

2.3

7.0

59

23

Model

Rated

power

Rated

voltage

Rated

current

Rated

speed

Efficiency

Cosφ

Stall torque

Rated torque

Stalled rotor current

Rated current

Maximum torque

Rated torque

Rated

Torque

Noise

Weight

kW

V

A

r/min

η%

%

Tst/Tn

Ist/In

Tmax/Tn

N.m

dB（A）

Kg

Synchronous Speed 1500r/min

YE3-90L-4

1.5

380

3.5

1440

85.3

0.77

2.3

7.0

2.3

9.6

59

25

YE3-100L1-4

2.2

380

4.8

1450

86.7

0.81

2.3

7.6

2.3

14.0

64

27

YE3-100L2-4

3

380

6.3

1450

87.7

0.82

2.3

7.6

2.3

19.1

64

30

YE3-112M-4

4

380

8.4

1450

88.6

0.82

2.2

7.8

2.3

25.5

65

35

YE3-132S-4

5.5

380

11.2

1470

89.6

0.83

2.0

7.9

2.3

35.0

71

65

YE3-132M-4

7.5

380

15.0

1470

90.4

0.84

2.0

7.5

2.3

47.8

71

78

YE3-160M-4

11

380

21.5

1475

91.4

0.85

2.2

7.7

2.3

70.0

73

135

YE3-160L-4

15

380

28.8

1475

92.1

0.86

2.2

7.8

2.3

95.5

73

147

YE3-180M-4

18.5

380

35.3

1480

92.6

0.86

2.0

7.8

2.3

118

76

172

YE3-180L-4

22

380

41.8

1480

93.0

0.86

2.0

7.8

2.3

140

76

198

YE3-200L-4

30

380

56.6

1475

93.6

0.86

2.0

7.3

2.3

191

76

251

YE3-225S-4

37

380

69.6

1485

93.9

0.86

2.0

7.4

2.3

236

78

305

YE3-225M-4

45

380

84.4

1485

94.2

0.86

2.0

7.4

2.3

287

</
